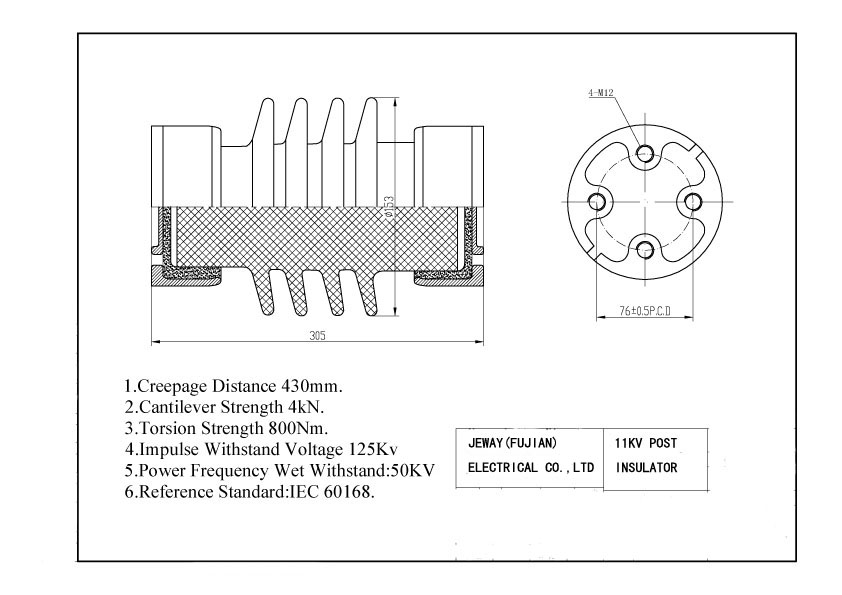

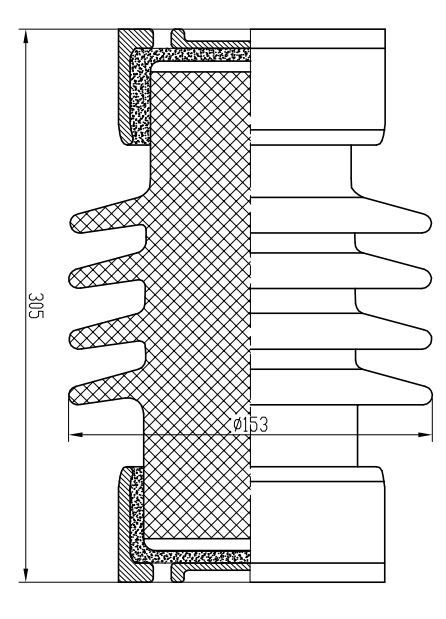

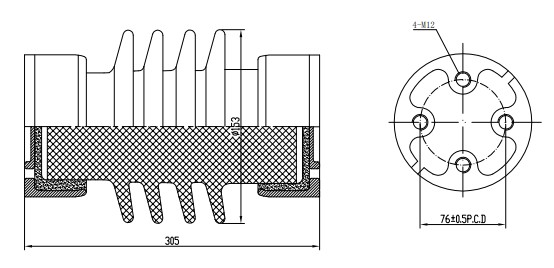

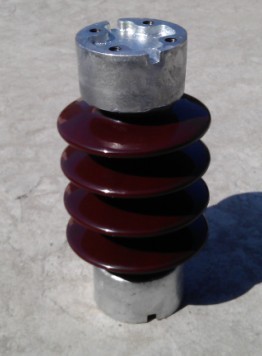

C4-125
Item No. C4-125
| MAIN DIMENSIONS AND STANDARD PARTICULARS | |
| Type | C4-125 |
| Creepage distance(mm) | 430 |
| Dry arcing distance(mm) | 200 |
| Cantilever strength(KN) | 4 |
| Tension Strength(KN) | 38 |
| Torsion strength(N.m) | 800 |
| Power frequency flashover wet voltage(KV) | 50 |
| Impulse withstand voltage(KV) | 125 |
| Net weight(KG) | 9 |
