56-1

Item No. 56-1

MAIN DIMENSIONS AND STANDARD PARTICULARS
Type		56-1
Recommend Pin Length,mm		152
Creepage Distance,mm		330
Dry Arcing Distance,mm		178

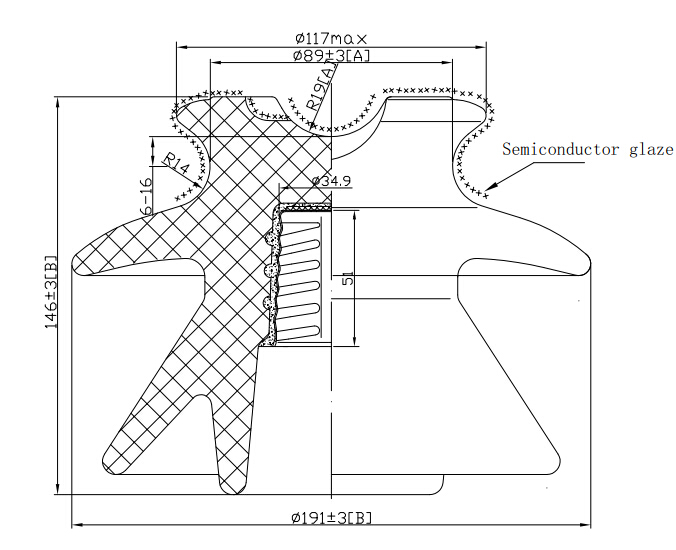

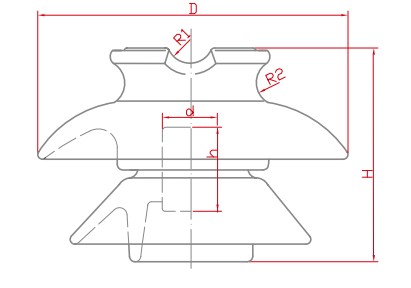

Dimmensions,mm	H	146
	h	51
	D	191
	d	35
	R1	19
	R2	14
Dry Arcing Distance,mm		11
Low Frequency Flashover Voltage	Dry, kv	95
Low Frequency Flashover Voltage	Wet, kv	60
Critical Impulse Flashover Voltage	Pos., kv	150
Critical Impulse Flashover Voltage	Neg., kv	190
Low Frequency Puncture Voltage,KV		130
Radio Influence Voltage Data	Test Voltage to Ground,KV	15
Radio Influence Voltage Data	Max.RIV at 1000KHZ,UV	100
Net Weight, Each Approx., kg		3.7
