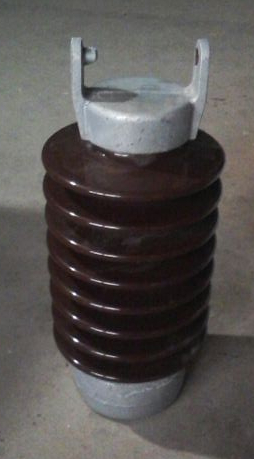

57-13

Item No. 57-13

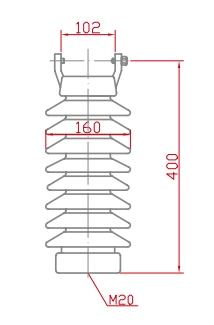

MAIN DIMENSIONS AND STANDARD PARTICULARS
ANSI Class		57-13
Creepage Distance, mm		737
Dry Arcing Distance, mm		311
Cantilever Strength, kn		12.5
Low Frequency Flashover Voltage	Dry, kv	125
	Wet, kv	100
Critical Impulse Flashover Voltage	Pos., kv	210
	Neg., kv	260
Test Voltage to Ground, kv		30
Maximum RIV at 1000KHZ, μv		200
Net Weight, Each Approx., kg		11.8
