Porcelain Insulator
»
- Line Post Insulator »
- Station Post Insulator »
- Disc Insulator »
- Pin Insulator »
- Long Rod Insulator »
- Porcelain Bushing »
- Strain Spool Shackle And Tele Insulator »
Porcelain insulators is made of ceramic material, which the installation altitude should be less than one thousand meter.Voltage is up to 0.3kv-330kv.They have higher leakage distance profiles and more stronger in compression.
-
Power Fitting
»
- Cross Arm »
- Insulator Spindle »
- Power Line Accessories »
Power fitting is made of mild steel /AL alloy which are used to fix the insulators, it advance hot dip/cold galvanized mode for processing.and it’s the connecting equipment in power system. -
Composite Insulators
»
- Suspension Composite Insulator »
- Pin type composite insulator »
- Line post composite insulator »
Composite insulators is made of polymer and widely used in high voltage transmission lines.With light weight,small size,high tensile strength,they are suitable for high polluted area.,the voltage is up to 11kv-33kv,it had applied standard of IEC61109 and IEC61952. -
Glass insulator
»
- Standard type Disc insulator »
- Fog type Disc insulator »
- Open air profile Disc insulator »
The surface of the glass insulator has high mechanical strength,it profect the surface from cracking.Compared with porcelain insulator,the aging process is much slower. -
ABC Cable Fitting
»
- Insulation Clamp »
- Piercing Connector Clamp »
- Parallel Clamp »
- Strain Clamp »
- Cable Lug »
The surface of the glass insulator has high mechanical strength,it profect the surface from cracking.Compared with porcelain insulator,the aging process is much slower. -
Cut Out Fuse And Arrester
»
- Porcelain Cut-out fuse »
- Composite Cut-out Fuse »
- Porcelain Arrester »
- Gang Insulator(Isolate Switch) »
- Polymer Arrester »
- Fuse And Arrester Fitting »
Cut out fuse is a combination of a fuse and a switch,it’s voltage is up to 11kv-33kv,which is made of porcelain,polymer or steel.When the current exceed the specified value,it will produce heat and disconnect.arrester is made of porcelain or polymer.the voltage is 11kv-33kv.it is a device used on electrical power systems to protect the insulation and conductors of the system from the damaging effects of lightning. -
Bus Bar Insulator And Cable
»
- LV bus bar insulator »
- HV bus bar insulator »
- Cable And Fittings »
Bus Bar Insulators mainly made from bulk molding compound, unsaturated polymer with fiber glass. Product itself are with good properties such as electrical resistance, hear resistance, fire resistance, low shrinkage, water resistance.
|

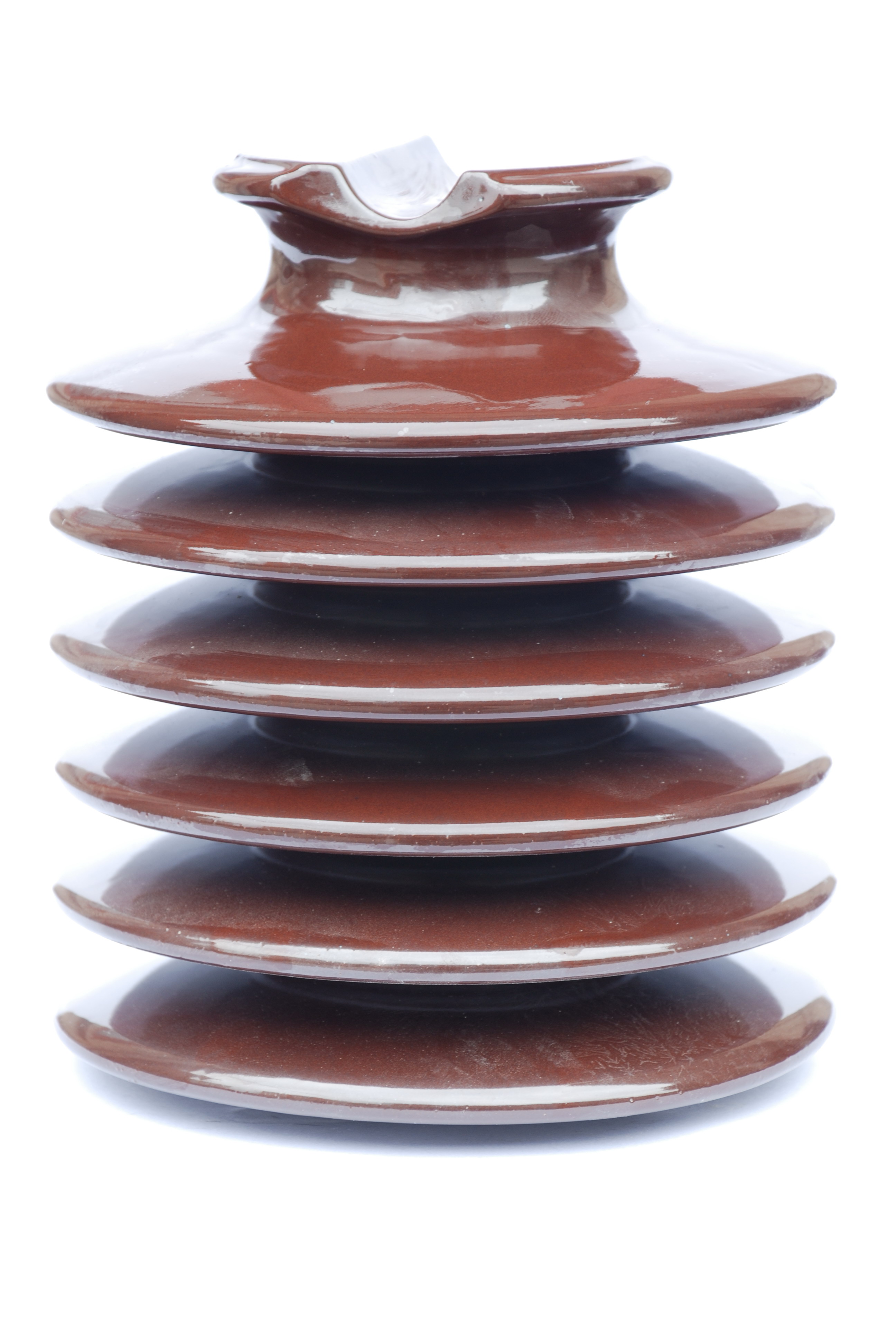

PW-33-Y
Item No. PW-33-Y
| MAIN DIMENSIONS AND STANDARD PARTICULARS | |||
| Bs class | PW-33-Y | ||
| Creepage Distance,mm | 900 | ||
| Dry Distance | 419 | ||
| Main Dimensions,mm | H | 320 | |
| h | 52.6 | ||
| D | 240 | ||
| d | 27.8 | ||
| R1 | 16 | ||
| R2 | 16 | ||
| Cantilever Strength,KN | 13 | ||
| Min Flashover Voltage | Power Frequency | Dry,KV | 140 |
| Wet,KV | 110 | ||
| Critical Impulse | Pos,KV | 210 | |
| Neg.KV | 245 | ||
| Withstand Voltage | One min Power Frequency | Dry,KV | 125 |
| Wet,KV | 100 | ||
| Withstand Vol.impulse,KV | 200 | ||
| RIV Data | Test volt.To ground,Kv | 44 | |
| Max RIV at 1000KHZ,Uv | 25000 | ||
| Power Frequency Puncture Voltage,KV | 210 | ||
| Approx.Weight,kg | 12.5 | ||
