57-32

Item No. 57-32

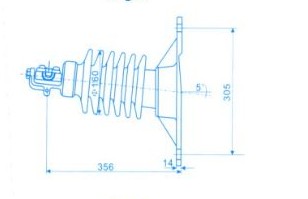

MAIN DIMENSIONS AND STANDARD PARTICULARS
Type	57-32
Creepage Distance/mm	559
Dry Arcing Distance/mm	241
Cantilever Strength/kn	12.5
Low Frequency Dry Flashover Voltage/kv	100
Low Frequency Wet Flashover Voltage/kv	70
Critical Impulse Flashover Voltage, Pos/kv	160
Critical Impulse Flashover Voltage, Neg/kv	205
Test Voltage to Ground/kv	22
Maximum RIV at 1000KHZ/μv	100
Net Weight/kg	12.5
Applicable standard	ANSI
