P-22-Y

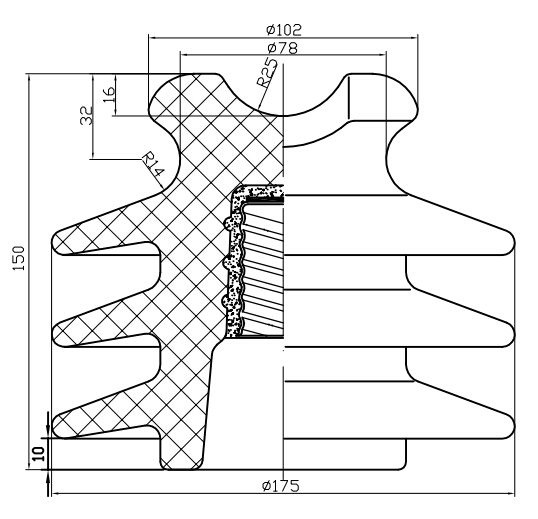

Item No. P-22-Y
| MAIN DIMENSIONS AND STANDARD PARTICULARS | |||
| Bs class | P-22-Y | ||
| Creepage Distance,mm | 432 | ||
| Dry Distance | 210 | ||
| Main Dimensions,mm | H | 178 | |
| h | 52.6 | ||
| D | 229 | ||
| d | 27.8 | ||
| R1 | 19 | ||
| R2 | 14.3 | ||
| Cantilever Strength,KN | 11 | ||
| Min Flashover Voltage | Power Frequency | Dry,KV | 110 |
| Wet,KV | 70 | ||
| Critical Impulse | Pos,KV | 175 | |
| Neg.KV | 225 | ||
| Withstand Voltage | One min Power Frequency | Dry,KV | 90 |
| Wet,KV | 55 | ||
| Withstand Vol.impulse,KV | 150 | ||
| RIV Data | Test volt.To ground,Kv | 22 | |
| Max RIV at 1000KHZ,Uv | 10000 | ||
| Power Frequency Puncture Voltage,KV | 145 | ||
| Approx.Weight,kg | 5 | ||
