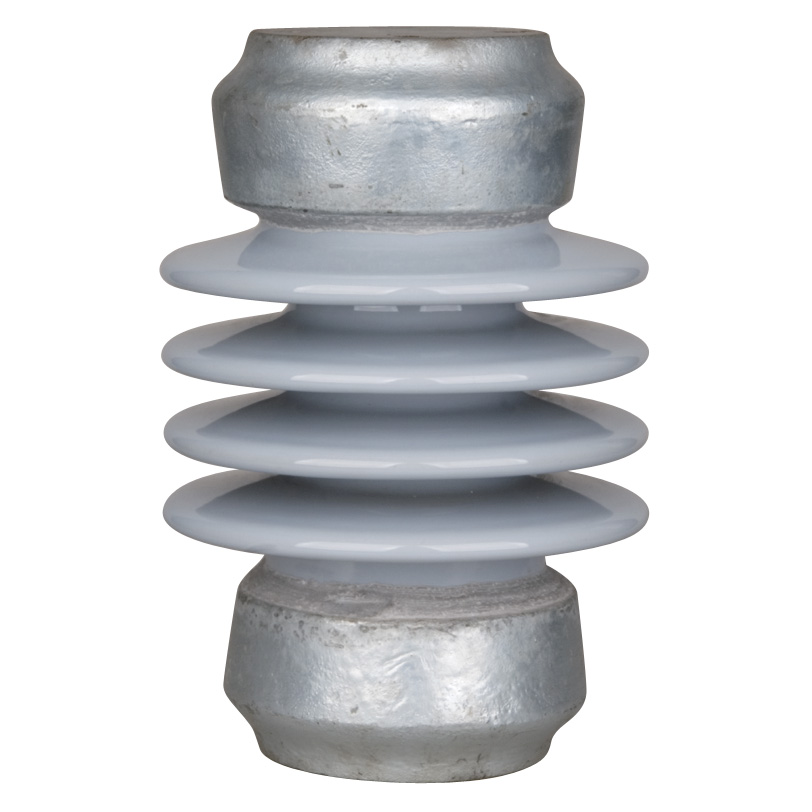

TR205 series

Item No. TR205

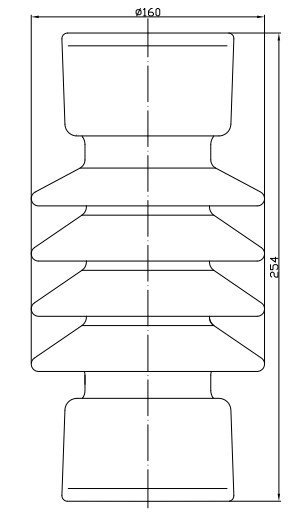

MAIN DIMENSIONS AND STANDARD PARTICULARS
ANSI Class	TR-205
Creepage Distance/mm	394
Cantilever Strength/kn	8.9
Tensile Strength/kn	38
Torsional Strength/k.m	791
Compression Strength/kn	44.5
Low Frequency Dry Flashover Voltage/kv	85
Low Frequency Wet Flashover Voltage/kv	55
Critical Impulse Flashover Voltage, Pos/kv	125
Critical Impulse Flashover Voltage, Neg/kv	200
Low Frequency Dry Withstand Voltage/kv	50
Low Frequency Wet Withstand Voltage/kv	45
Impulse Withstand Voltage/kv	110
Net Weight/kg	7
Applicable Standard	ANSI C29.9
