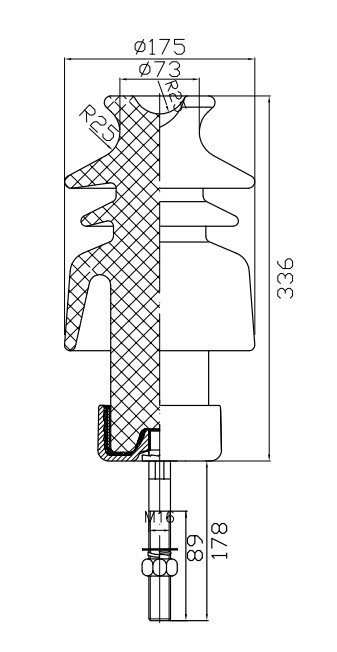

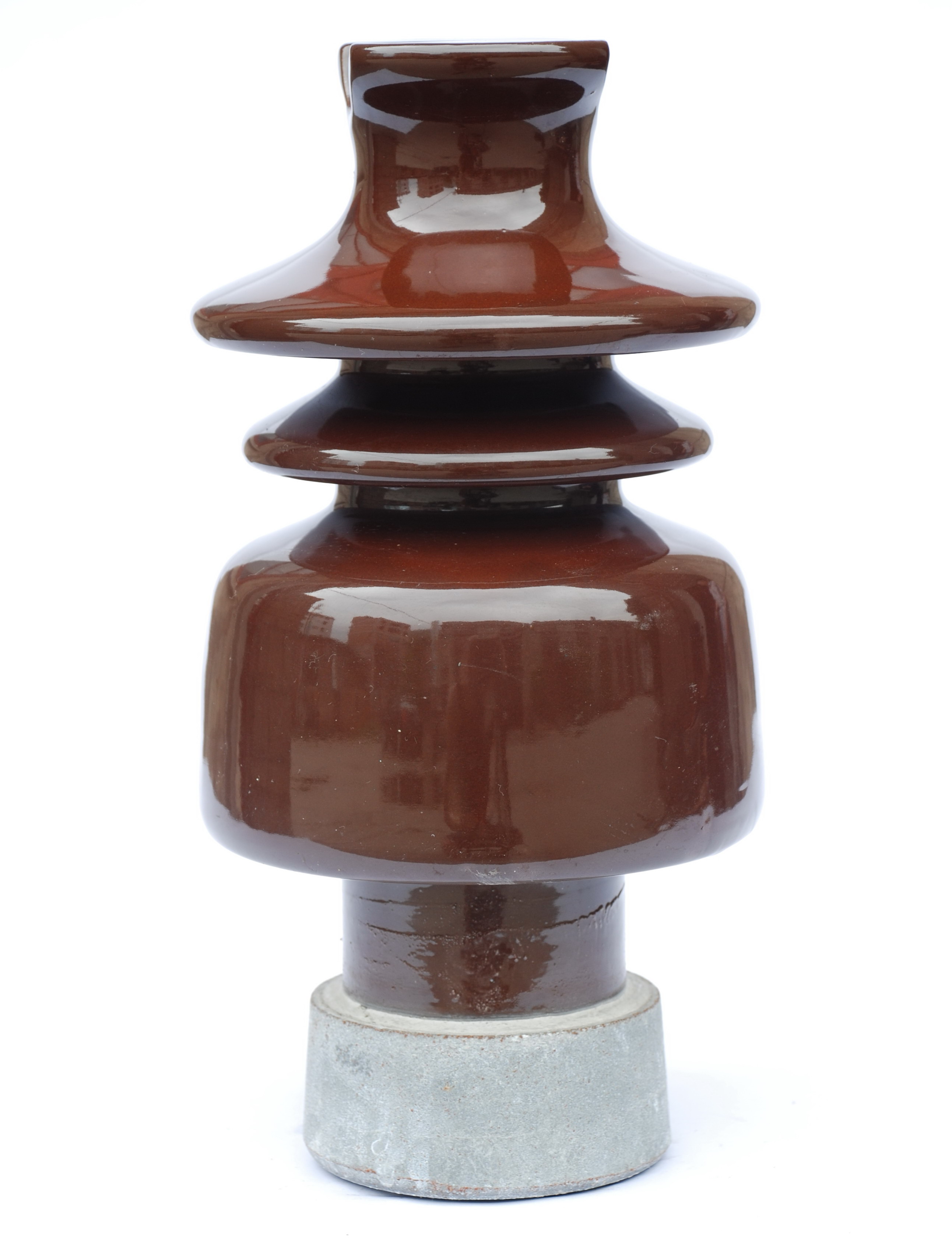

11006
Item No. 11006
| MAIN DIMENSIONS AND STANDARD PARTICULARS | ||
| Cat.No. | 11006 | |
| Leakage Distance/mm | 500 | |
| Protective Leakage Distance/mm | 250 | |
| Min.Cantilever Failing Load/kn | 12.5 | |
| Power-freq.1 min Withstand Voltage | Dry/kv | 90 |
| Wet/kv | 65 | |
| Lightning Impulse Withstand Voltage/kv | 150 | |
| Net Weight/kg | 9.4 | |
| Applicable Standard:IEC383 AS2947.2 | ||
