TR210 series

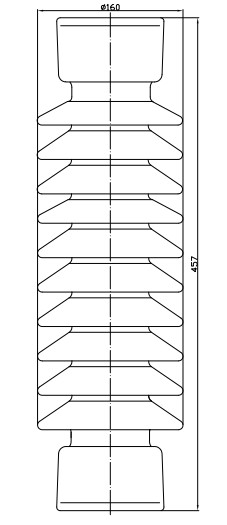

Item No. TR210

MAIN DIMENSIONS AND STANDARD PARTICULARS
Cat.No.	TR-210
Creepage Distance/mm	940
Cantilever Strength/kn	8.9
Tensile Strength/kn	53
Torsional Strength/k.m	1130
Compression Strength/kn	66.7
Low Frequency Dry Flashover Voltage/kv	145
Low Frequency Wet Flashover Voltage/kv	100
Critical Impulse Flashover Voltage, Pos/kv	225
Critical Impulse Flashover Voltage, Neg/kv	290
Low Frequency Dry Withstand Voltage/kv	95
Low Frequency Wet Withstand Voltage/kv	80
Impulse Withstand Voltage/kv	200
Net Weight/kg	16
Applicable Standard	ANSI C29.9
