P-11-Y

Item No. P-11-Y

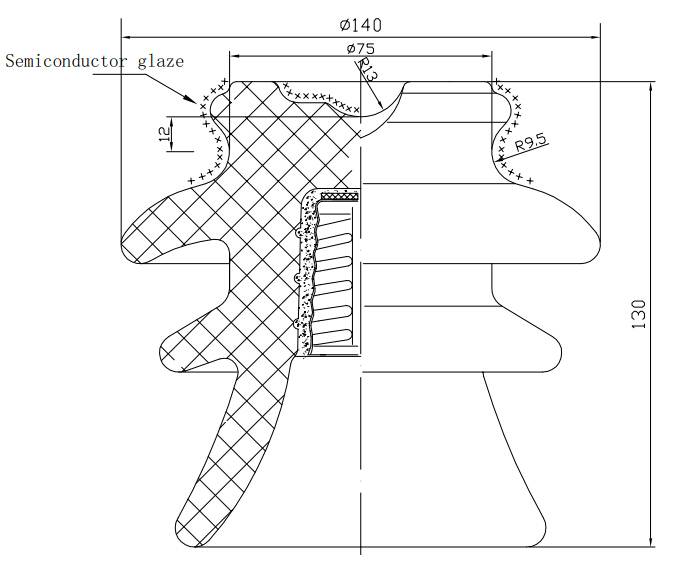

MAIN DIMENSIONS AND STANDARD PARTICULARS
Bs class			P-11-Y
Creepage Distance,mm			254
Dry Distance			102
Main Dimensions,mm	H		130
	h		48
	D		140
	d		18.3
	R1		13
	R2		9.5
Cantilever Strength,KN			11
Min Flashover Voltage	Power Frequency	Dry,KV	75
	Power Frequency	Wet,KV	50
	Critical Impulse	Pos,KV	115
	Critical Impulse	Neg.KV	150
Withstand Voltage	One min Power Frequency	Dry,KV	65
Withstand Voltage	One min Power Frequency	Wet,KV	40
Withstand Vol.impulse,KV			90
RIV Data	Test volt.To ground,Kv		15
RIV Data	Max RIV at 1000KHZ,Uv		8000
Power Frequency Puncture Voltage,KV			150
Approx.Weight,kg			1.8
