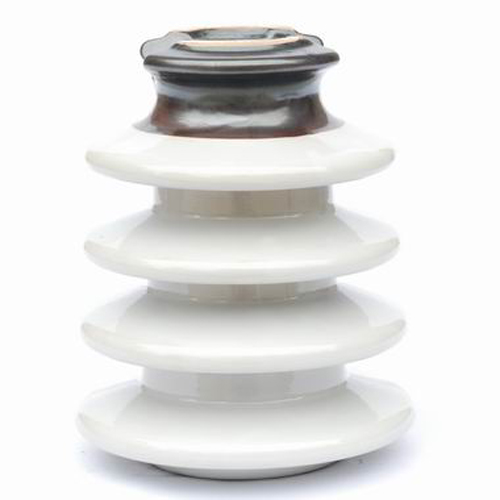

ALP22-450
Item No. ALP22-450

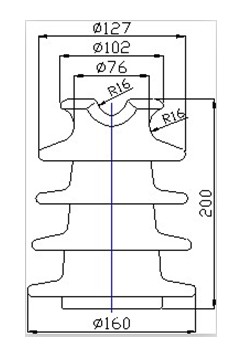

| MAIN DIMENSIONS AND STANDARD PARTICULAR | ||
| Type | ALP22-450 | |
| Main Dimension | H | 200 |
| D | 160 | |
| Creepage Distance | 450 | |
| Lighting Impulse Withstand Voltage(KV) | 150 | |
| Wet Power Frequency Withstand Voltage | 50 | |
| Miunimum Bending Failing Load | 11 | |
| Weight(kg) | 3.5 | |
| Recom Mended Pin Type | C/200/11 | |
| Designation | 450A11 | |
